SQ 1610

SQ 1610

SQ 1610 Single Quadrupole Mass Spectrometer

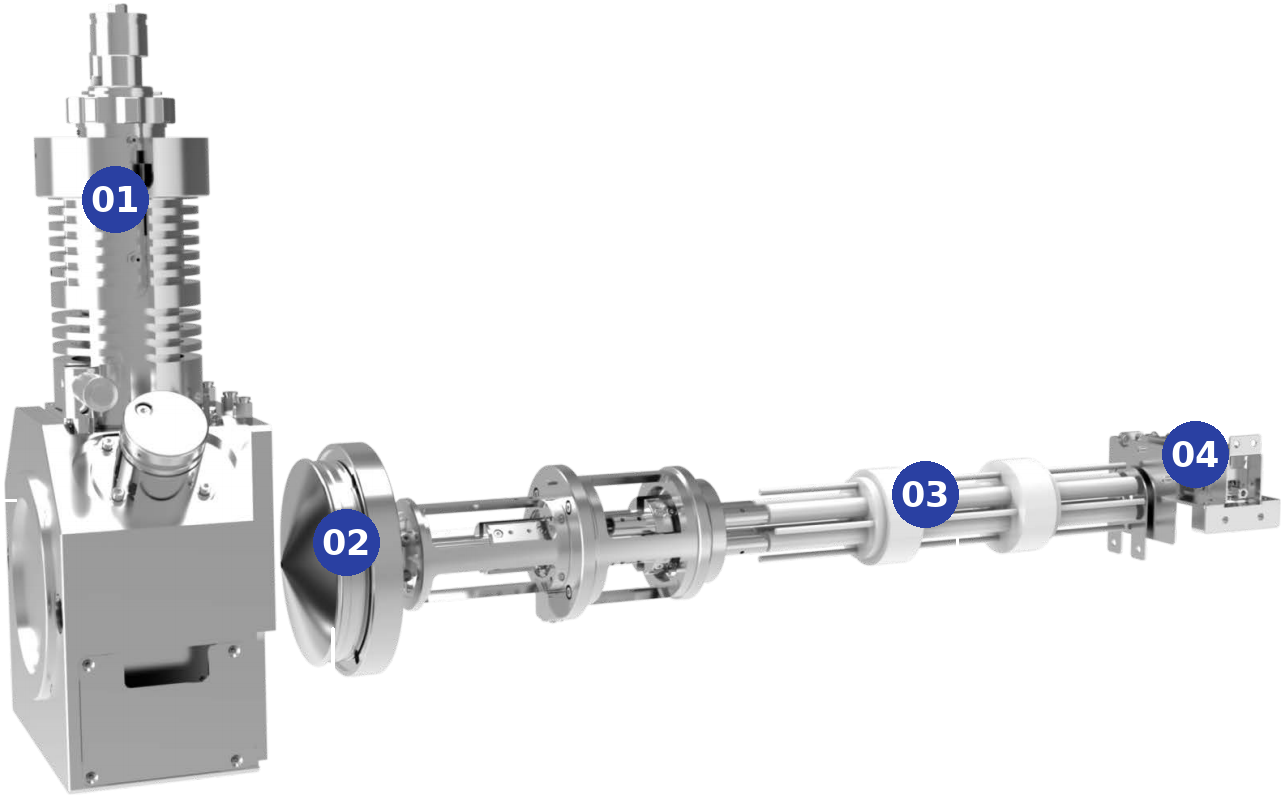

BIKAI SQ 1610 single‑quadrupole LC‑MS is engineered for outstanding anti‑contamination performance. Instrument downtime is mostly caused by contamination rather than hardware specifications. SQ 1610 addresses contamination risks throughout the full ion‑path: orthogonal spray design, active exhaust system, heated counter‑flow curtain gas paired with a 0.3 mm cone orifice (without consumable capillary), and gold‑plated molybdenum quadrupole. These four independent protective measures together deliver stable mass‑axis performance with mass stability of 0.2 amu over 24‑hour operation.

Delivered as a complete analytical system bundled with a binary UHPLC front‑end, providing seamless liquid‑phase separation and mass detection workflows.

Analyser	200 mm circular pure-molybdenum quadrupole, gold-plated
Resolution	Unit mass resolution
Mass axis stability	0.2 amu / 24 h
Repeatability	Reserpine peak area RSD below 8%
Acquisition modes	Full scan, SIM, simultaneous full scan and SIM, alternating scan
Detector	Discrete-dynode electron multiplier
Vacuum system	Three-stage differential; 40 m³/h rotary; 30 and 60 L/s oil-free multi-port turbo, air-cooled
Dimensions	330 × 350 × 585 mm
Data system	Independent acquisition and data-processing software; English, Chinese and Russian interfaces

Supplied with a binary UHPLC front end

18,000 psi	0.001–5.000 mL/min	4 °C – ambient	RT+5 – 90 °C
Maximum system pressure — 1.7 to 5 µm columns, HPLC and UHPLC on one system	Parallel short-stroke binary gradient pump, four solvent selection, active plunger wash	Cooled autosampler, 4 × 54 vials or 4 × 96-well, carryover below 0.0025%	Forced-air column oven, ±1 °C, four 300 mm columns with optional switching valves
